WHERE DESIGN MEETS FUNCTIONALITY

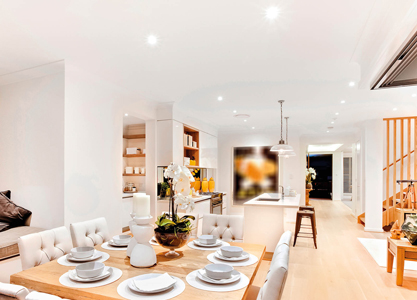

Engineered with a patented open-back design, Evofire downlights enhance heat dissipation, extending lamp life and ensuring reliable, high-performance lighting in both residential and commercial spaces.

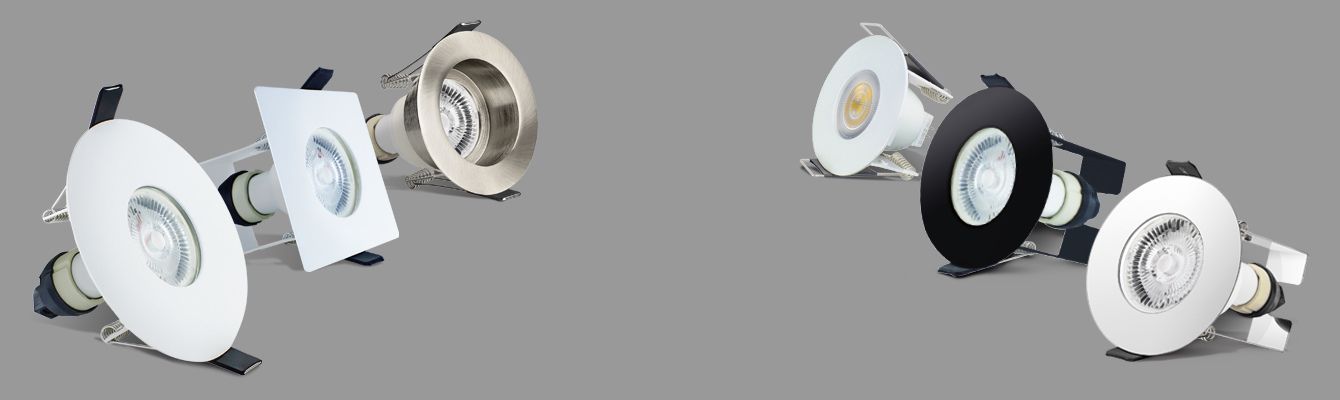

Every product in the Evofire family features a sleek and discreet 1mm thick bezel for a virtually seamless integration into any ceiling, while the Evofire Micro Bezel edition offers unmatched subtlety with a bezel that is up to 40% smaller than previous models.

Fixed models with IP65 protection are ideal for moisture-prone areas like bathrooms and kitchens.



AESTHETIC

Showcasing a design-led approach to fire-rated lighting, the Evofire utilises high-quality fire-rated steel and tempered glass to elevate the appearance of the range whilst providing verified fire protection.

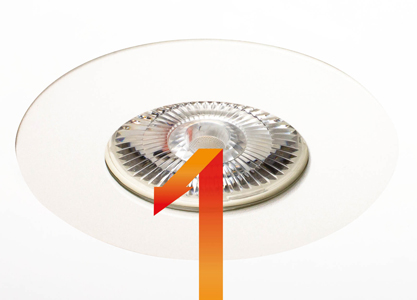

With an ultra-slim 1mm “blend-in” profile, the bezel is up to 10 times thinner than available on market competitors, providing a flawless look that enhances the overall design of any space.

FIRE-RATED

Evofire downlights are tested and certified by EXOVA, Peutz or SGS, and compliant with EN 1365-2 and BS 476 Part 21.

All models are fire-rated for 30, 60, and 90 minutes in ceilings with solid timber joist construction, and for 30 and 60 minutes in ceilings with i-joist construction.

CANLESS

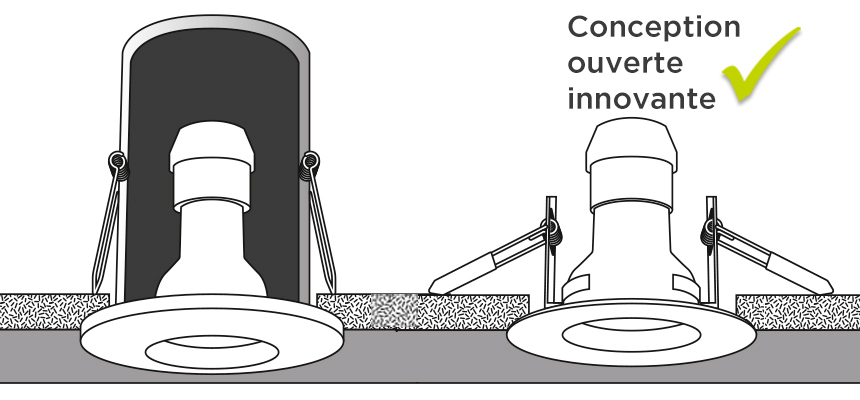

The Evofire’s patented canless design, developed by Integral, allows lamps to operate up to 10°C cooler than in typical can-style fire-rated downlights, significantly extending lamp life.

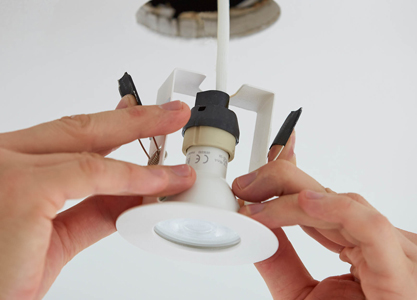

This design also simplifies installation and removal, whilst allowing the downlight to fit into shallower ceiling voids than most traditional canned alternatives.



Pourquoi choisir Evofire?


  • Collerette d'1 mm et finition premium
  • Installation et un retrait faciles
  • Câblage rapide via un connecteur push-fit, loop-in/out
  • Profil bas pour les espaces restreints
  • Classé IP65, également idéal pour une utilisation dans les salles de bain
  • Haute qualité à un prix avantageux
  • Résistant au feu grâce à sa construction durable en verre et en acier

Evofire Micro Bezel





Micro Bezel: Mini

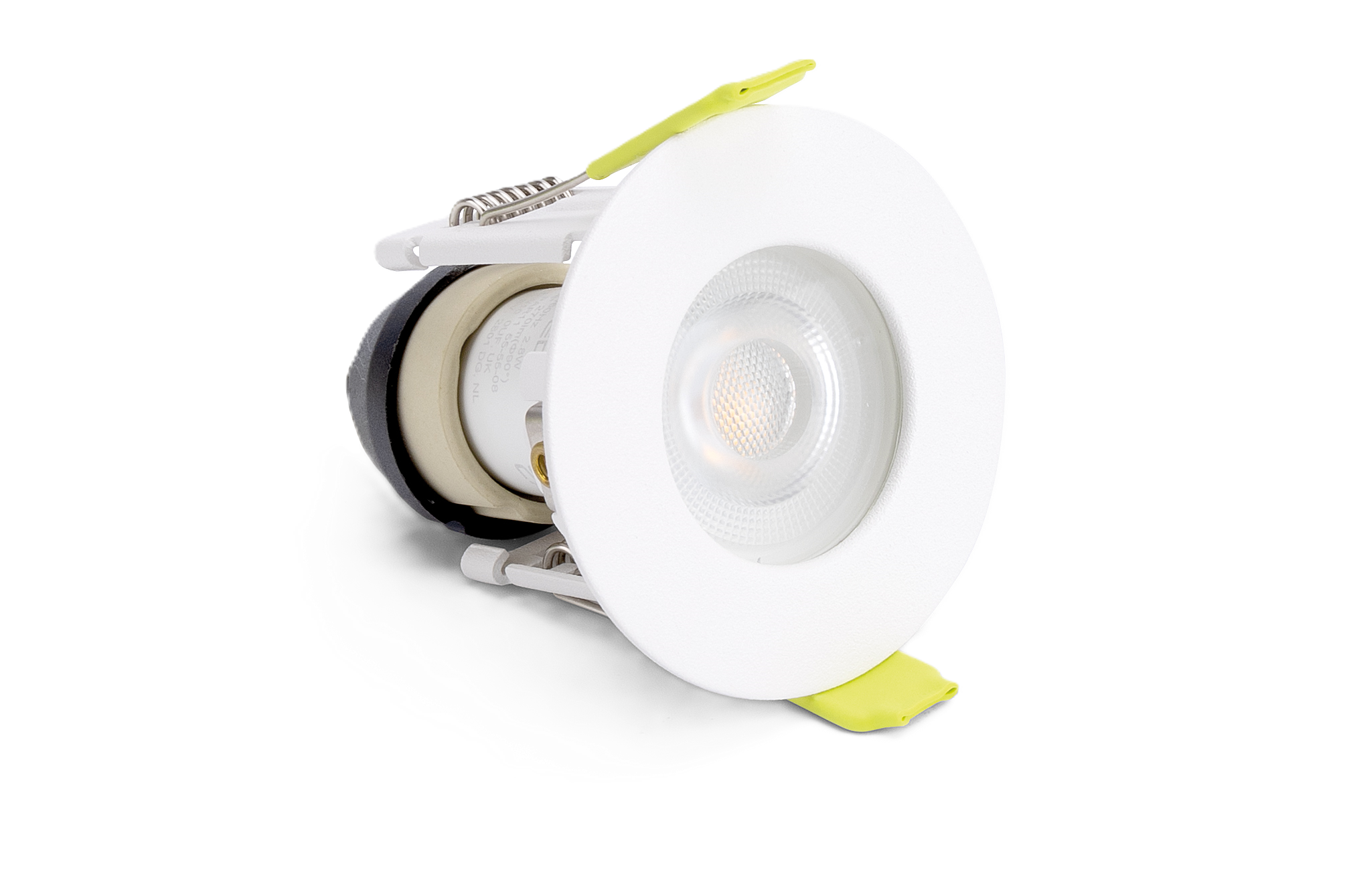

side angle shot of Integral LED Evofire Mini Micro Bezel 43mm cut-out round white fire-rated downlight. Angle shows bezel with lamp fitted and the open-back design.
Product Code Cut-out (mm) Shape Finish Insulation Guard Lamp Holder
ILDLFR43D060 43 Round White Optional accessory Yes
ILDLFR43D061 43 Round Satin Nickel Optional accessory Yes
ILDLFR43D062 43 Round Polished Chrome Optional accessory Yes
ILDLFR43D065 43 Round Black Optional accessory Yes



Accessories

Product Code Description Finish
ILDLFR43D074 Clip-on Insulation Guard for 43mm cut-out -
ILDLFR43D075 Bezel Extender - 43-60mm cut-out White
ILDLFR43D076 Bezel Extender - 43-60mm cut-out Satin Nickel
ILDLFR43D077 Bezel Extender - 43-60mm cut-out Polished Chrome
ILDLFR43D078 Bezel Extender - 43-60mm cut-out Brass
ILDLFR43D079 Bezel Extender - 43-60mm cut-out Copper
ILDLFR43D080 Bezel Extender - 43-60mm cut-out Black
ILDLFR43D081 Bezel Extender - 43-60mm cut-out Black Chrome




Micro Bezel: Standard

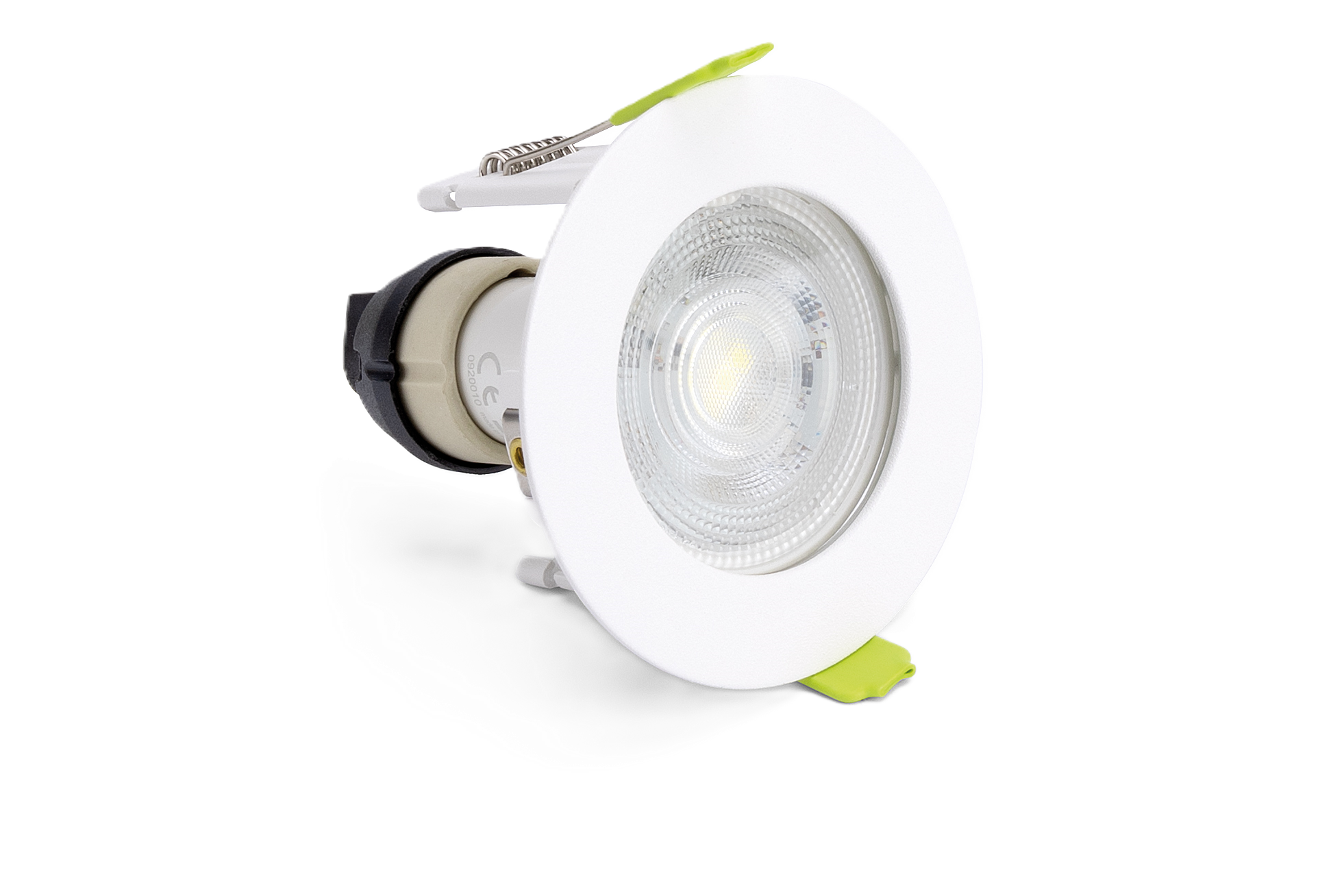

side angle shot of Integral LED Evofire Micro Bezel 60mm cut-out round white fire-rated downlight. Angle shows bezel with lamp fitted and the open-back design.
Product Code Cut-out (mm) Shape Finish Insulation Guard Lamp Holder
ILDLFR60D104 60 Round White Optional accessory Yes
ILDLFR60D105 60 Round Satin Nickel Optional accessory Yes
ILDLFR60D109 60 Round Black Optional accessory Yes



Accessories

Product Code Description Finish
ILDLFR55K246 Clip-on Insulation Guard for 55-60mm cut-out -




Micro Bezel: Tiltable



side angle shot of Integral LED Evofire Micro Bezel tiltable 70mm cut-out round white fire-rated downlight. Angle shows bezel with lamp fitted and the open-back design.
Product Code Cut-out (mm) Shape Finish Insulation Guard Lamp Holder
ILDLFR70K168 70 Round White Optional accessory Yes
ILDLFR70K169 70 Round Satin Nickel Optional accessory Yes
ILDLFR70K170 70 Round Polished Chrome Optional accessory Yes
ILDLFR70K173 70 Round Black Optional accessory Yes



Accessories

Product Code Description Finish
ILDLFR55K270 Clip-on Insulation Guard for 70-100mm cut-out -


Evofire







Mini



side angle shot of Integral LED Evofire Mini 45mm cut-out round white fire-rated downlight. Angle shows bezel with lamp fitted and the open-back design.
Product Code Cut-out (mm) Shape Finish Insulation Guard Lamp Holder
ILDLFR45D037 45 Round White No No
ILDLFR45D038 45 Round Satin Nickel No No
ILDLFR45D039 45 Round Polished Chrome No No
ILDLFR45D040 45 Round Black No No
ILDLFR45D041 45 Round Antique Brass No No
ILDLFR45D043 45 Round Copper No No
ILDLFR45D051 45 Round Black Chrome No No



Accessories

Product Code Description Finish
ILDLA001 GU10 Lamp Holder with Loop in/Loop out Terminal Box & 300mm Cable -




Standard

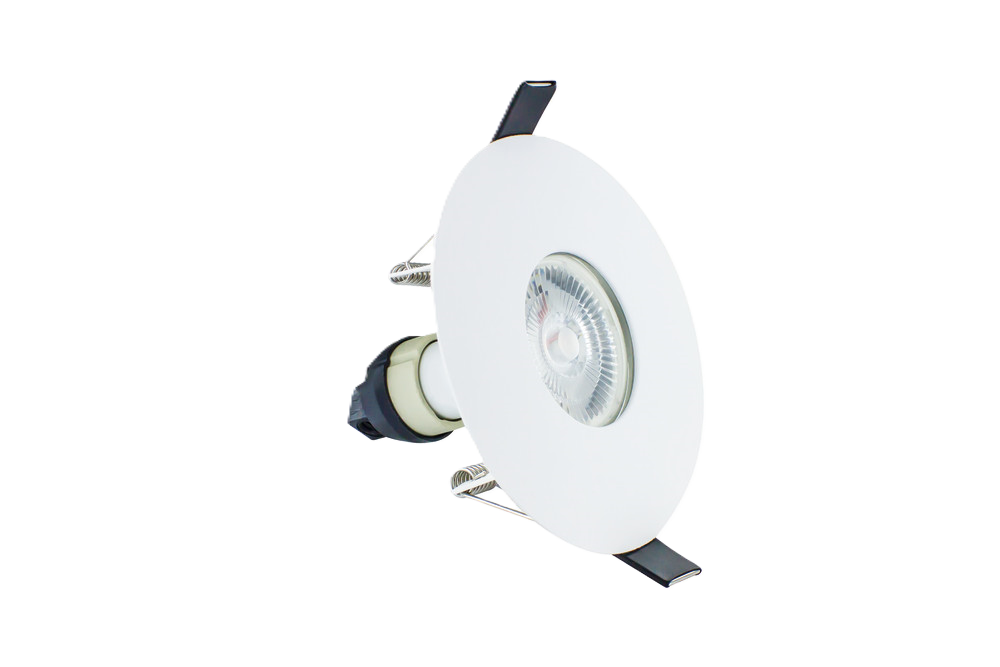

side angle shot of Integral LED Evofire Standard 70mm cut-out round white fire-rated downlight. Angle shows bezel with lamp fitted and the open-back design.

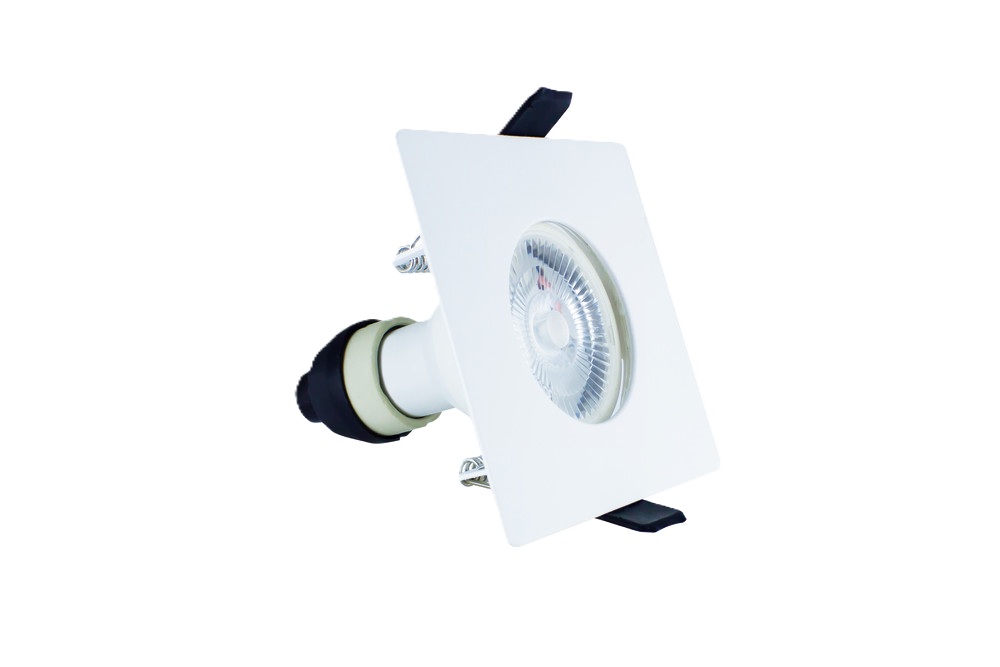

side angle shot of Integral LED Evofire Standard 70mm cut-out square white fire-rated downlight. Angle shows bezel with lamp fitted and the open-back design.
Product Code Pack Size Cut-out (mm) Shape Finish Insulation Guard Lamp Holder
ILDLFR70D001 - 70 Round White No Yes
ILDLFR70D001-4 4 Pack 70 Round White No Yes
ILDLFR70D002 - 70 Round Satin Nickel No Yes
ILDLFR70D002-4 4 Pack 70 Round Satin Nickel No Yes
ILDLFR70D003 - 70 Round White Yes Yes
ILDLFR70D003-3 3 Pack 70 Round White Yes Yes
ILDLFR70D004 - 70 Round Satin Nickel Yes Yes
ILDLFR70D004-3 3 Pack 70 Round Satin Nickel Yes Yes
ILDLFR70D011 - 70 Round White No No
ILDLFR70D012 - 70 Round White Yes No
ILDLFR70D017 - 70 Round Polished Chrome No Yes
ILDLFR70D018 - 70 Round Polished Chrome Yes Yes
ILDLFR70D028 - 70 Round Black No Yes
ILDLFR70D029 - 70 Round Black Yes Yes
ILDLFR70D045 - 70 Round Antique Brass No Yes
ILDLFR70D046 - 70 Round Antique Brass Yes Yes
ILDLFR70D047 - 70 Round Copper No Yes
ILDLFR70D048 - 70 Round Copper Yes Yes
ILDLFR70D007 - 70 Square White No Yes
ILDLFR70D008 - 70 Square Satin Nickel No Yes
ILDLFR70D009 - 70 Square White Yes Yes
ILDLFR70D010 - 70 Square Satin Nickel Yes Yes



Accessories

Product Code Description Finish
ILDLA001 GU10 Lamp Holder with Loop in/Loop out Terminal Box & 300mm Cable -
ILDLFR70D030 Round Bezel Extender - 70-100mm cut-out Black
ILDLFR70D005 Round Bezel Extender - 70-100mm cut-out White
ILDLFR70D006 Round Bezel Extender - 70-100mm cut-out Satin Nickel
ILDLFR70D019 Round Bezel Extender - 70-100mm cut-out Polished Chrome
ILDLFR70D049 Round Bezel Extender - 70-100mm cut-out Antique Brass
ILDLFR70D050 Round Bezel Extender - 70-100mm cut-out Copper




Maxi



side angle shot of Integral LED Evofire Maxi 70-100mm cut-out round white fire-rated downlight. Angle shows bezel with lamp fitted and the open-back design.
Product Code Cut-out (mm) Shape Finish Insulation Guard Lamp Holder
ILDLFR70D013 70-100 Round White Yes Yes
ILDLFR70D014 70-100 Round Satin Nickel Yes Yes
ILDLFR70D015 70-100 Round White No Yes
ILDLFR70D016 70-100 Round Satin Nickel No Yes
ILDLFR70D020 70-100 Round Polished Chrome Yes Yes
ILDLFR70D021 70-100 Round Polished Chrome No Yes




Maxi Tiltable

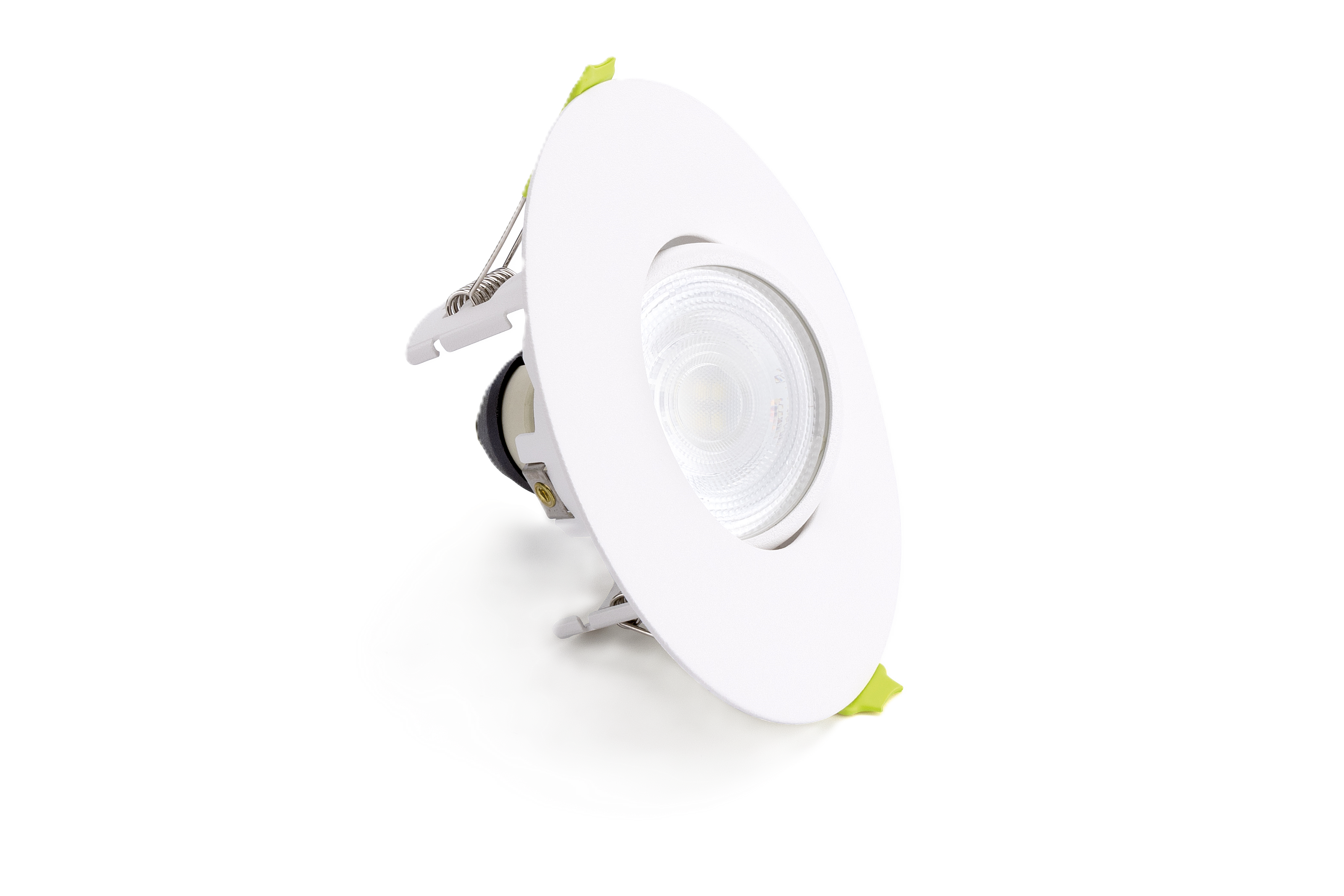

side angle shot of Integral LED Evofire Maxi Tiltable 70-100mm cut-out round white fire-rated downlight. Angle shows bezel with lamp fitted and the open-back design.
Product Code Cut-out (mm) Shape Finish Insulation Guard Lamp Holder
ILDLFR70K182 70-100 Round White Optional accessory Yes
ILDLFR70K183 70-100 Round Satin Nickel Optional accessory Yes
ILDLFR70K184 70-100 Round Polished Chrome Optional accessory Yes



Accessories

Product Code Description Finish
ILDLFR55K270 Clip-on Insulation Guard for 70-100mm cut-out -




Recessed



side angle shot of Integral LED Evofire Recessed 70 cut-out round white fire-rated downlight. Angle shows bezel with lamp fitted and the open-back design.
Product Code Cut-out (mm) Shape Finish Insulation Guard Lamp Holder
ILDLFR70E001 70 Round White No Yes
ILDLFR70E002 70 Round Satin Nickel No Yes
ILDLFR70E003 70 Round White Yes Yes
ILDLFR70E004 70 Round Satin Nickel Yes Yes
